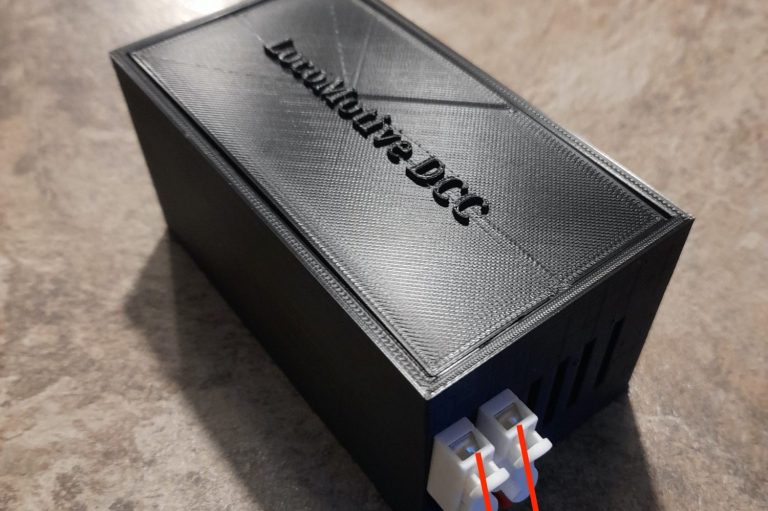

LocoMotive DCC

 Value for money, reliable, simple to use, customise the system to match your roster of locos.

 Very easy to use system plus App gives a complete DCC controller with features that beat more expensive systems.

 - Install App on an Android device (phone or tablet)

 - Plug in a DC 15 volt power source

 - Store your roster of up to 50 locomotives

What is different about this system ?

A very simple electronic circuit provides the DCC signal and power for the track, however the App does the real work ! The computer on your phone is utilised to the full by constructing the codes required to form each packet of instructions, thus simplifying the job of the controller !

You have 3 Apps on the Google Play Store to choose from:

Basic: free App “LocoMotive Cab”

Standard: "Locomotive DCC" App with short addressing and CV read write “LocoMotive DCC”  £5.99

Full featured:  "Locomotive DCC 2" App with 4 digit addressing, CV read/write, program on the main(PoM) and making consists  “Locomotive DCC 2” £8.49

The easiest ever, NMRA compliant DCC Command station !!

Look at the list of features below !!

Suitable for NMRA compatible decoders e.g. Bachmann, Lenz, Atlas, Hornby, etc

Includes instructions and  a free 'LocoMotive Cab' Android App from Google Play store.

This revolutionary system compiles the operating DCC packets within the App which are sent to the Microcontroller interface to combine with the DCC clock signals.

Full App features include:

• Roster list contains up to 100 locos with short or long address
• Ideal for small to medium size layouts
• 2.5 Amps load drives 12 or more of OO/HO locomotives (more on Z or N gauge)
• Short circuit protected
• Automatic overload cut-out
• Lights and direction
• Functions 1 to 32
• Turnout / points / accessories 255 pairs of outputs
• Custom naming of your locos
• Read / write CV's 1 to 1024
• Add your own accessory addresses

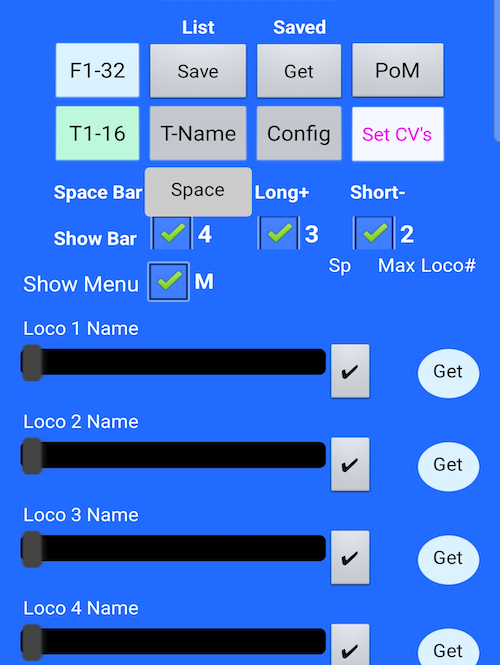

• Editable titles, visibility and momentary options on 28 function buttons

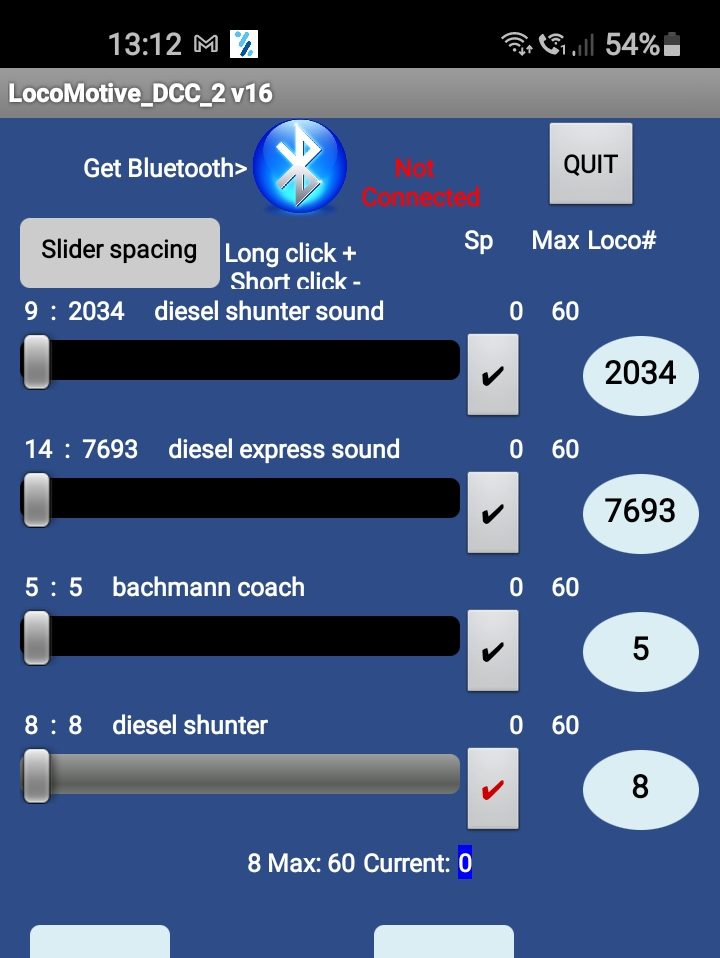

• 4 on-screen speed bars for control of 4 locos at a time
• Add max speed for each loco
• Long address (1-9999) and short address (1-127)
• Program on the main
• Form a consist (double head your locos)
• Powered by Arduino

Details of the design and build of this system are described on this website:

NB: App works on Android 8 upwards.

App is not compatible with Apple iOS

Power supply:   voltage of 12 to 18 volts DC

Ensure correct polarity of output plug before connecting.

Connect a 15v 2 amp power supply with a 2.1mm/2.5mm x 5.5 mm plug , for example

search for  eBay item 235622756192 or go to 'Purchase' section for direct ordering via PayPal

or

Connect a 15v 3 amp power supply similar to :

PowerPax item SW4323B  with a 2.1mm/2.5mm x 5.5 mm plug, available from cpc.farnell.com

or

Connect a Multibao 15v 3A adapter with a 2.1mm/2.5mm x 5.5 mm plug,  search for in Amazon

or

Connect a Photonic Universe 16v 3A adapter with a 2.1mm x 5.5 mm plug,  search for in Amazon

or

For N or Z gauge use a 12v 3 amp power adapter with a 2.1 mm x 5.5 mm plug, search on Amazon

Do NOT use a AC nor a DC train controller as these do not provide a true DC voltage.

For users over 14 years old.

For indoor use only.
